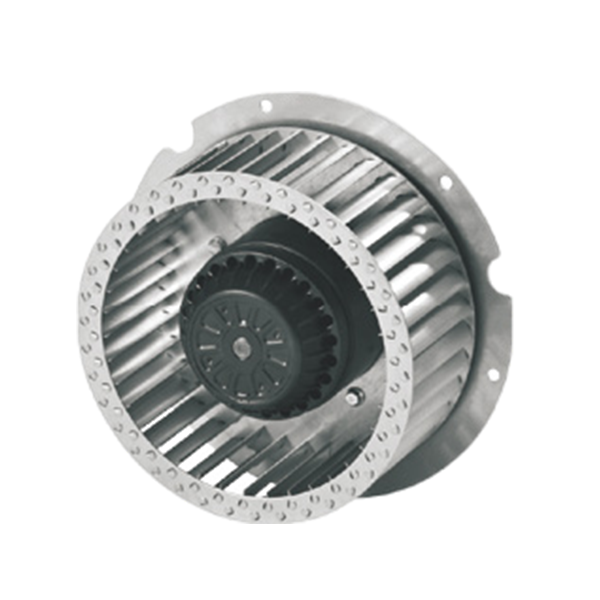

Forward curved Centrifugal Fan
It has the characteristics of high efficiency, energy conservation, high static pressure, low noise, and flexible installation, and has a higher energy efficiency ratio compared to other types of fans, which can save energy and reduce operating costs.
The following products are retrieved for you.
Motor Type
Fan Model
Voltage
(VAC)
Frequency
(HZ)
Input Power
(W)
Current
(A)
Air Volume
(m³/h)
Speed
(r/min)
EC
ECF(K)4E146-PLQDAJ0
230
50/60
120
1
550
3000
EC
ECF(K)4E146-PLQDAJ1
230
50/60
120
1
360
2500
EC
ECF(K)6E160-PLQDAJ1
230
50/60
143
1.04
530
2280
EC
ECF(K)6E180-PLQDAJ0
230
50/60
165
1.2
860
2070
EC
ECF(K)6E200-PLQDAJ0-P
230
50/60
340
1.5
1350
1600
EC
ECF(K)8E225-PLQDAJ0-P
230
50/60
480
2
1800
1400
EC
ECF(K)8E250-PLQDAJ0-P
230
50/60
520
2.5
2100
1400
EC
ECF(K)8D280-PLQDAJ0
400
50/60
1260
2.12
3700
1285
EC
ECF(K)8D315-PLQDAJ0
400
50/60
3050
4.7
5500
1470
EC
ECF(K)8D355-PLQDAJ0
400
50/60
3000
4.7
6200
1250
EC
ECF(K)8D400-PLQDAJ0
400
50/60
2510
3.9
6400
1280
EC
ECF(K)8D450-PLQDAJ0
400
50/60
2500
4
7000
845
AC
YWF(K)4E200-GQ
230
50
330
1.52
1230
1280
AC
YWF(K)4D200-GQ
400
50
330
0.63
1250
1270
AC
YWF(K)6E200-GQ
230
50
105
0.47
710
870
AC
YWF(K)4E225-GQ
230
50
510
2.3
1800
1320
AC
YWF(K)4D225-GQ
230/400
50
490
1.43/0.82
1770
1300
AC
YWF(K)6E225-GQ
230
50
250
1.3
1300
930
AC
YWF(K)6D225-GQ
230/400
50
300
1.4/0.81
1300
930
AC
YWF(K)4E250-GQ
230
50
900
4.1
2500
1330
AC
YWF(K)4D250-GQ
230/400
50
870
3.1/1.8
2400
1400
AC
YWF(K)6E250-GQ
230
50
320
1.6
1650
900
AC
YWF(K)6D250-GQ
230/400
50
320
1.4/0.81
1700
910
AC
YWF(K)4E280-GQ
230
50
1600
7.3
3500
1360
AC
YWF(K)4D280-GQ
230/400
50
1700
5.4/3.2
3500
1360
AC
YWF(K)6E280-GQ
230
50
450
2.2
2250
900
AC
YWF(K)6D280-GQ
230/400
50
450
1.48/0.85
2200
900
AC
YWF(K)4E315-GQ
230
50
2300
10
4200@400
1360
AC
YWF(K)4D315-GQ
230/400
50
2200
6.9/4.0
4000@420
1360
AC
YWF(K)6E315-GQ
230
50
720
3.6
2800@150
870
AC
YWF(K)6D315-GQ
230/400
50
780
2.6/1.5
3200@100
940
AC
YWF(K)4D355-GQ
230/400
50
3500
10.2/5.9
6000@500
1340
AC
YWF(K)6D355-GQ
230/400
50
1150
4.0/2.3
4100@200
900
AC
YWF(K)8D355-GQ-LD
230/400
50
660
2.4/1.4
3580
620
AC
YWF(K)4D400-GQ
230/400
50
4800
13.9/8.0
6000@750
1400
AC
YWF(K)6D400-GQ
230/400
50
2800
8.44/4.85
7000@50
870
AC
YWF(K)8D400-GQ
230/400
50
1700
6.43/3.7
5800
700
AC
YWF(K)6D450-GQ
230/400
50
3500
10.4/6.0
7500@450
930
AC
YWF(K)8D450-GQ
230/400
50
2000
7.13/4.1
7200@180
680
