Backward curved Centrifugal Fan

Improve efficiency and reduce costs, innovate with unique features

Home > Products> Backward curved Centrifugal Fan> Radial plug fan

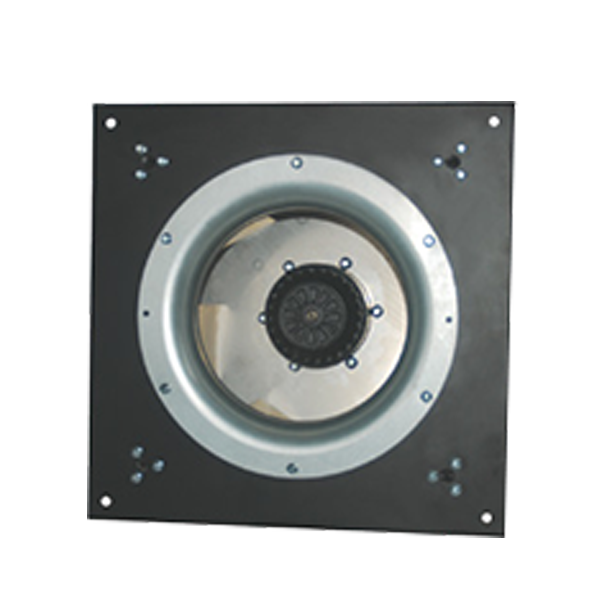

Radial plug fan
Sanmu has a self-designed volute free fan, making the fan a unit that can form a fan wall. Efficient EC technology enables fan efficiency to reach over 68%, suitable for all sizes from 192 to 560mm.
The compact EC external rotor motor and integrated control electronic drive are integrated, meeting the European ERP2020 energy efficiency standard.
The Hall free motor drive design makes the motor more stable and has a longer lifespan.

Suitable for air conditioning and ventilation fields such as AHU and FFU.


Product search Sanmu

Air Volume ——

The following products are retrieved for you.

Motor Type
Fan Model
Voltage
(VAC)
Frequency
(HZ)
Input Power
(W)
Current
(A)
Air Volume
(m³/h)
Speed
(r/min)
EC
ECF(K)4E133-PLHDAL0
230
50/60
47
0.39
335
4450
EC
ECF(K)4E175-PLHDAL0
230
50/60
125
1
720
4420
EC
ECF(K)4E192-PLHDAL0
230
50/60
120
1
750
3500
EC
ECF(K)6E192-PLHDAL1
230
50/60
171
1.3
956
4300
EC
ECF(K)4E220-PLHDAL0
230
50/60
115
1
1000
2750
EC
ECF(K)6E220-PLHDAL0
230
50/60
105
1
990
2800
EC
ECF(K)6E220-PLHDAL1
230
50/60
180
1.3
1200
3350
EC
ECF(K)4E225-PLHDAL3
230
50/60
95
0.8
1025
2500
EC
ECF(K)6E225-PLHDAL1
230
50/60
210
1.6
1280
3010
EC
ECF(K)6E250-PLHDAL0
230
50/60
270
1.8
1550
2800
EC
ECF(K)6E250-PLHDAL1
230
50/60
540
2.38
2850
3100
EC
ECF(K)6E250-PLHDAL10
230
50/60
803
3.47
2850
3530
EC
ECF(K)6D250-PLHDAL1
400
50/60
840
1.4
2850
3750
EC
ECF(K)6E280-PLHDAL0
230
50/60
245
1.7
1700
2500
EC
ECF(K)6E280-PLHDAL3-PR
230
50/60
730
3.2
3600
2850
EC
ECF(K)6D280-PLHDAL1
400
50/60
1140
1.86
4150
3270
EC
ECF(K)6E310-PLHDAL10
230
50/60
250
1.87
2100
2230
EC
ECF(K)6E310-PLHDAL11
230
50/60
410
3.3
3400
2000
EC
ECF(K)6E310-PLHDAL8
230
50/60
635
4.94
2770
3050
EC
ECF(K)8D310-PLHDAL1
400
50/60
1650
2.8
4900
3160
EC
ECF(K)8D310-PLHDAL6
400
50/60
2170
3.5
5570
3650
EC
ECF(K)8D310-PLHDAL5
400
50/60
3030
5.3
6680
3660
EC
ECF(K)6E355-PLHDAL2
230
50/60
270
2.3
2700
1550
EC
ECF(K)8E355-PLHDAL0
230
50/60
800
5.8
5000
2000
EC
ECF(K)8D355-PLHDAL10
400
50/60
1100
1.8
6360
2200
EC
ECF(K)8D355-PLHDAL12
400
50/60
1700
2.7
6600
2530
EC
ECF(K)8D355-PLHDAL0
400
50/60
2560
4.1
7300
2950
EC
ECF(K)8D355-PLHDAL11
400
50/60
3250
5.1
8350
3200
EC
ECF(K)6E400-PLHDAL1-PR
230
50/60
388
1.7
3800
1310
EC
ECF(K)8E400-PLHDAL0
230
50/60
560
4
5050
1430
EC
ECF(K)8D400-PLHDAL0
400
50/60
3350
5
9100
2640
EC
ECF(K)8D400-PLHDAL1
400
50/60
1580
2.5
7600
2100
EC
ECF(K)8D400-PLHDAL10
400
50/60
2130
3.3
8180
2270
EC
ECF(K)8D400-PLHDAL4
400
50/60
3600
5.65
9800
2750
EC
ECF(K)8E450-PLHDAL0
230
50/60
562
4.38
5500
1300
EC
ECF(K)8E450-PLHDAL1
230
50/60
795
3.44
5800
1400
EC
ECF(K)8D450-PLHDAL3
400
50/60
2950
4.5
10600
2150
EC
ECF(K)8D500-PLHDAL0
400
50/60
1250
2.1
8200
1470
EC
ECF(K)8D500-PLHDAL4
400
50/60
2800
4.4
12800
1800
EC
ECF(K)8D500-PLHDAL7
400
50/60
4130
6.4
13800
1970
EC
ECF(K)8E560-PLHDAL0
230
50/60
650
4.3
9500
1050
EC
ECF(K)8D560-PLHDAL6
400
50/60
3200
4.9
15100
1610
EC
ECF(K)8D560-PLHDAL5
400
50/60
3530
5.5
13500
1830
EC
ECF(K)8D630-PLHDAL1
400
50/60
2580
4
14200
1250
EC
ECF(K)8D630-PLHDAL0
400
50/60
3078
4.75
15400
1340
EC
ECF(K)8D630-PLHDAL4
400
50/60
3760
5.7
17000
1400
